What is Minerva?

Minerva is a suite of software tools for interpreting and interacting with complex images, organized around a guided analysis approach. The software enables fast sharing of large image data that is stored on Amazon S3 and viewed using a zoomable image viewer implemented using OpenSeadragon, making it ideal for integration into multi-omic browsers for data dissemination of tissue atlases. Check out the Minerva Wiki to learn more about the software and for news.

The Minerva suite includes Minerva Story, a narrative, web-based image viewer, and Minerva Author, a tool that enables the user to easily create a guided analysis, or story. Individuals with minimal coding experience can use Minerva Author to create a guided analysis of an image, which is then shared and visualized using Minerva Story. Guided analyses of multiplexed cyclic multiplex immunofluorescence (CyCIF), immunohistochemistry (IHC), and H&E images created by multiple lab members can be found on the data page and in the Featured Stories section below.

Figure 1
/minerva/tn_lung_hist.jpg
Lung Adenocarcinoma (Histology)
Explore
/minerva/tn_lung_data.jpg

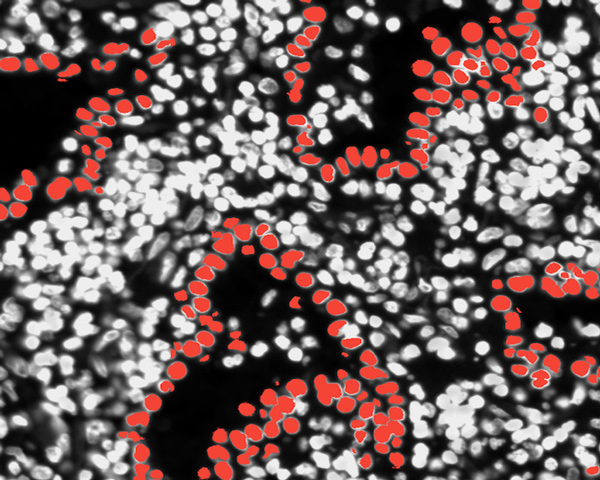

Lung Adenocarcinoma (Data Analysis)
Explore
/minerva/tn_heart.jpg
Multiple Myocardial Infarcts
Explore
/minerva/tn_crc_tnp.jpg
Colorectal Adenocarcinoma
Explore
/minerva/tn_melanoma_excep.jpg
Melanoma Exceptional Responder
Explore
/minerva/tn_melanoma.jpg
Melanoma
Explore
/minerva/tn_schwanomma.jpg
CNS Manifestations of Neurofibromatosis
Explore
/minerva/tn_tnp_zstack.jpg
Colorectal Adenocarcinoma (3D Stack)
Explore
/minerva/tn_breast_brca.jpg
BRCA Mut v. WT Breast Cancer
Explore

How does Minerva work?

Minerva follows a client-server model for delivering content. Images in OME-TIFF format are imported into Minerva Author where a user sets image settings and annotations. Minerva author then renders image pyramids and a configuration file that is read by Minerva Story to deliver the content to clients.

Figure 1

How do I implement Minerva?

Check out the Minerva Wiki for detailed user instructions, which walk the user through downloading and running Minerva Author, importing data, and creating channel groups to author a story. After authoring your story, you will deploy Minerva Story by cloning the repository on GitHub, adding your content to the repository, and deploying your story locally or via GitHub. We have chosen to deploy via GitHub and store data on Amazon S3 for universal sharing. All source code for Minerva is available on Minerva Github.

Publications

Rashid R, Chen YA, Hoffer J, Muhlich JL, Lin JR, Krueger R, Pfister H, Mitchell R, Santagata S, and Sorger PK. Interpretative guides for interacting with tissue atlas and digital pathology data using the Minerva browser. BioRxiv. (2020) https://doi.org/10.1101/2020.03.27.001834.

Hoffer J, Rashid R, Muhlich JL, Chen Y-A, Russell DPW, Ruokonen J, Krueger R, Pfister H, Santagata S, Sorger PK. Minerva: a light-weight, narrative image browser for multiplexed tissue images. J Open Source Software. 2020 Oct 15;5(54):2579.

Development Chart

  Concept Req. Review Development Documentation Stage Rollout Publication
Minerva Story alt text alt text alt text alt text beta v1.0.0 .
Minerva Author alt text alt text alt text alt text beta v1.2.0 .
Minerva Cloud alt text alt text alt text
Minerva Analysis alt text alt text alt text
Minerva Atlas alt text alt text alt text
